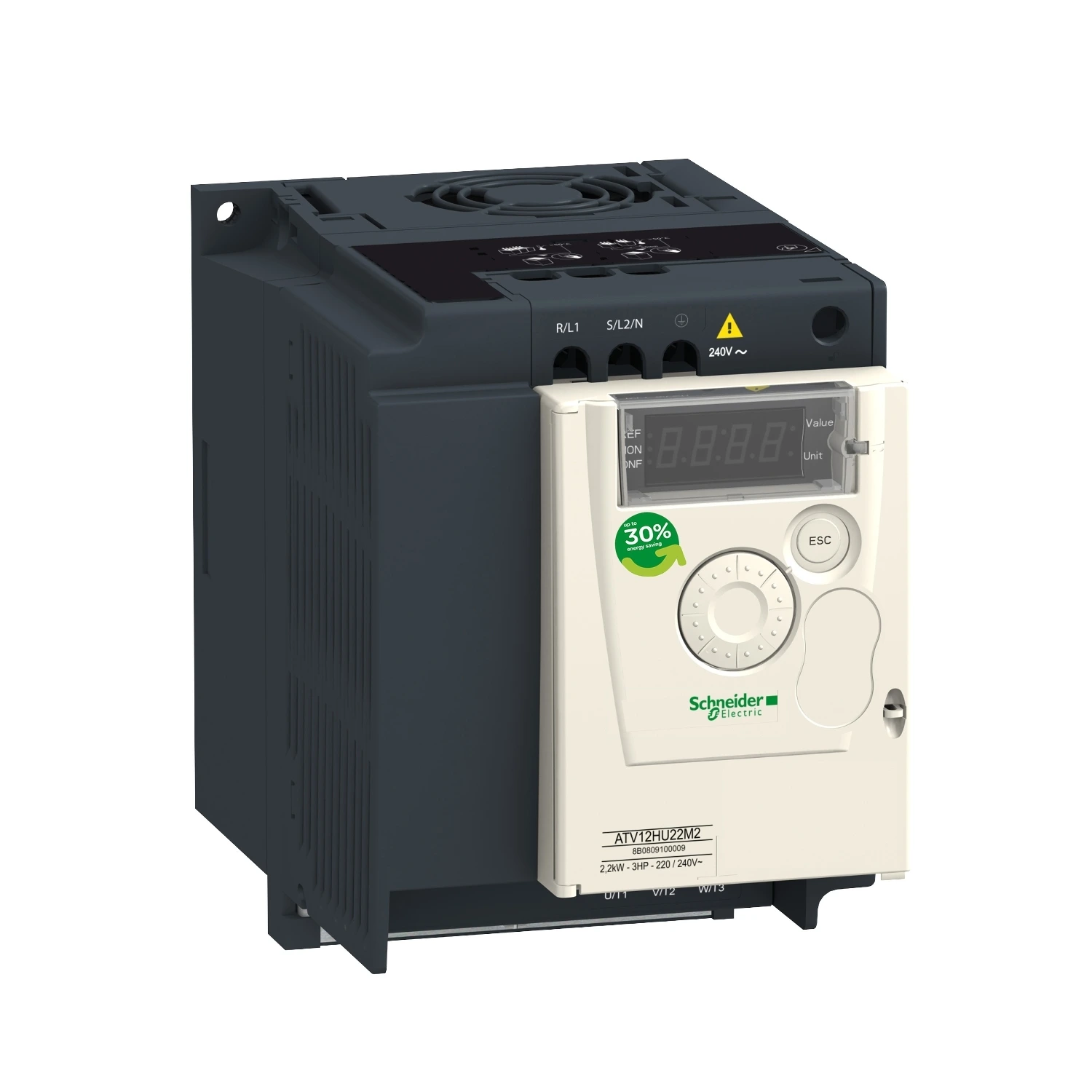

Variable speed drive ATV12 – 2.2kW – 3hp – 200..240V – 3ph – with heat sink (ATV12HU22M3)
- Product code: ATV12HU22M3
- Series: Altivar 12
- Manufacturer: Schneider Electric
- Power(kW): 2.2
- Supply Voltage (Us): 200 .. 240 V
- Phases: Three-phase
- Protection class: IP20
€170.27 excl. VAT
| Weight | 1.508 kg |
|---|---|
| Dimensions | 18.7 × 18.7 × 18.5 cm |
| Manufacturer SKU | ATV12HU22M3 |
| Series | Altivar 12 |
| Brand | |
| Power (kW) | 2.2 |
| Supply Voltage (Us) | 200 .. 240 V |
| Phases | Three-phase |
| Protection class (IP) | IP20 |
Specifications
Designed for integration
- Advanced functions for increased productivity (integrated PID, multi-speed, etc.)
- Easy communication with machine components via integrated universal Modbus serial link
- Smaller footprint, as the baseplate mounted version dissipates heat into the machine frame
Highest quality
Improved performance for your motors thanks to:
- The factory settings, which provide a high-quality drive from the very first time the power is turned on
- The integration of Standard (U/f), Performance (sensorless flux vector control, or SVC), and Pump/Fan (quadratic profile Kn²) control profiles
- High dynamic performance on acceleration and braking
- Excellent speed regulation on machine load surges
- Reduced noise and maintenance
Designed for easy fitting and wiring
- Easy access angles
- Numerous, easy-to-identify markings
- Fast detection and protection against current motor peaks (familiar with motor switching and catch-on-the-fly applications)
- Perfect integration of single-phase 240 V model into the electrical network thanks to its built-in EMC filter
Save time on wiring
- Easy access to all the wiring and settings on the front panel
- Easy access angles
- Only one screwdriver is needed for all connections
Save time on programming
The drive can be configured before it is received (by the distributor), during storage (by the storekeeper), or during fitting before the electrical enclosure is powered up for the first time.
- A navigation button for easy menu access: configure your application parameters in just a few clicks
- A three-level menu structure
- Reference Mode: In local operation (On/Off buttons) and for speed adjustment and display
- Monitoring Mode: For displaying parameters (create your own menu)
- Configuration Mode: For configuring your applications and settings
- Save time on commissioning
- No adjustment is required and there is a quick start guide for immediate setup
- Ease of programming: Work in the language of your choice
- SoMove software for configuring on PC and transferring the configuration via Bluetooth® or using a cable
- Simple configuration transfer via Simple or Multi-Loader
Functions
Discreet in size but big on performance!
Variable speed drives for commercial equipment and small machines with three-phase 240 V asynchronous motor
- 0.18 to 0.75 kW, 120 V single-phase power supply
- 0.18 to 2.2 kW, 240 V single-phase power supply
- 0.18 to 4 kW, 240 V three-phase power supply
- Can be configured in its packaging
- Quick start option requiring no adjustment
- Intuitive navigation
- Even more compact
- Category 1 EMC filter
- Local control on the front panel
- Modbus serial link
- Resistant to harsh operating environments
